Mr Steam MS400EC1X Steam Generator - Express Steam 240V/1PH

See Price in Cart
Mr Steam MS400EC1X Steam Generator - Express Steam 240V/1PH

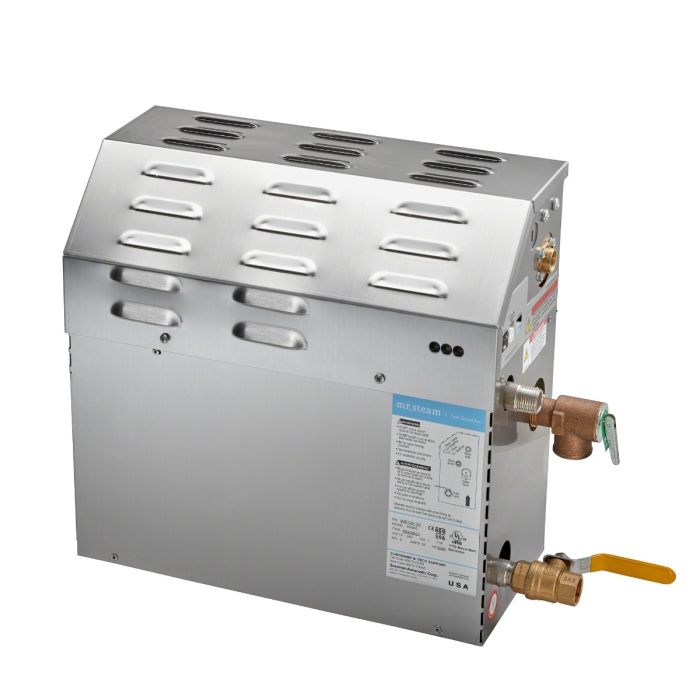

Mr Steam MS400EC1X Steam Generator

Enjoy the pleasure of your own private steam room with Mr. Steam's MS400EC1 steam generator. Designed to accommodate steam rooms of up to 360 cubic feet, it's easy to install and can be located up to 60 feet from the steam room. Typical generator installation locations include closets, vanities, basements, heated attics and other similar spaces within605' of the steam room. Stainless steel design, inside and out, gives these units long lasting strength and durability.

  • Features:
  • Unitized Stainless Steel reservoir
  • Industrial grade, large diameter, serviceable heating element
  • Modular snap-in control connections
  • Electronic water-level control system
  • Full-port manual drain valve
  • Built-in, low-voltage 24-volt safety control circuit
  • 60-minute electronic countdown with 75-minute limiting safety back-up
  • ASME safety valve
  • UL/CSA/CE listed
  • Unit Dimensions: 14 1/2L x 14-3/4H x 6-3/4D
  • Add 6-3/8 to length if purchasing AutoFlush option
  • Max Enclosure Volume: 375 cubic feet
  • Electrical Rating: 9KW 240Volts 38Amps 1Phase 8AWG Wire
  • Covered by MrSteam Limited Lifetime Warranty
  • Displayed with optional Autoflush automatic drain valve
  • Requires either the Tempo, TempoPlus or Butler control package listed below to complete installation
  • Full-port manual drain valve (MS-400E MS 400E MS400-E MS400)
More Information
Weight 32.0000
Part # MS400EC1X
Manufacturer Mr Steam
UPC 767931170157
Category Steam Generator
Express Steam Express Steam 240V/1PH +210

File Downloads

(Size: 6.2 MB)
(Size: 93.1 KB)
Spec Sheet
