Mr Steam MS90EC1 Steam Generator - Standard Steam 240V/1PH

See Price in Cart
SKU
MS90EC1
Mr Steam MS90EC1 Steam Generator - Standard Steam 240V/1PH Mr Steam Shower Generators our the most popular Shower steam generators. Shop all the Mr Steam Generators at the Lowest Price on the Internet from a Mr Steam Authorized Dealer sku-MS90EC1

Mr Steam MS90EC1 Steam Generator -


Enjoy the pleasure of your own private steam room with Mr. Steam's MS90E steam generator. Designed to accommodate steam rooms of up to 100 cubic feet, it's easy to install and can be located up to 60 feet from the steam room. Typical generator installation locations include closets, vanities, basements, heated attics and other similar spaces within 60' of the steam room. Stainless steel design, inside and out, gives these units long lasting strength and durability.
Features:

  • Unitized Stainless Steel reservoir
  • Industrial grade, large diameter, serviceable heating element
  • Modular snap-in control connections
  • Electronic water-level control system
  • Full-port manual drain valve
  • Built-in, low-voltage 24-volt safety control circuit
  • 60-minute electronic countdown with 75-minute limiting safety back-up
  • ASME safety valve
  • UL/CSA/CE listed
  • Unit Dimensions: 14 1/2L x 14-3/4H x 6-3/4D
  • Add 6-3/8 to length if purchasing AutoFlush option
  • Max Enclosure Volume: 100 cubic feet
  • Electrical Rating: 5KW 240Volts 21Amps 1Phase 10AWG Wire
  • Covered by MrSteam Limited Lifetime Warranty

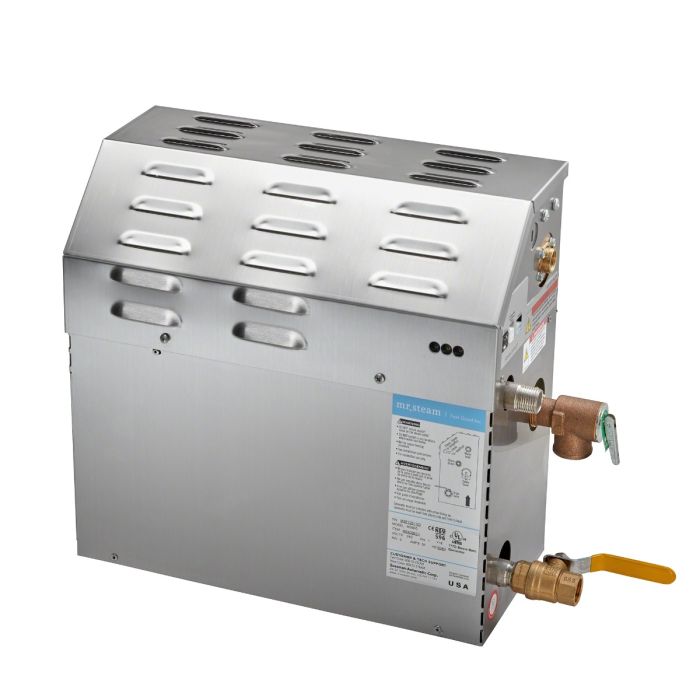

  • Displayed with optional Autoflush automatic drain valve
  • Requires either the eTempo, eTempoPlus or Butler1 control package
More Information
SKU MS90EC1
MPN MS90EC1
Weight 25.0000
Manufacturer Mr Steam
UPC 767931130014
GTIN 00767931130014
Category Steam Generator

File Downloads

pdf
(Size: 6.2 MB)
pdf
(Size: 92.6 KB)
Spec Sheet
